Manifold

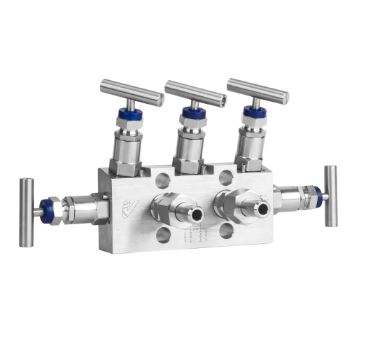

FZ50 Manifold
Types: 5-valve manifold
Material: stainless steel SUS304, SUS316
Mechanical connection: 1/2-14NPT(F), M20*1.5(M), M20*1.5(M) with rear welding guiding pressure tube, customer
Hole center distance between valve body two ends (instruments side): 54mm, 55.2mm,55.6mm, 57.2mm, 57.6mm, customer
Hole center distance between valve body two ends (mechanical connection side): standard 33mm, customer

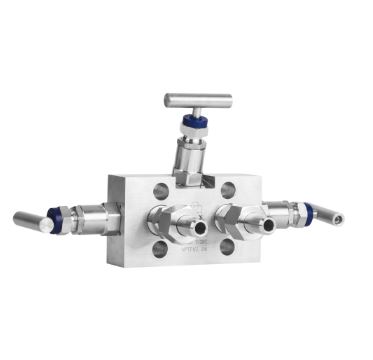

FZ30 Manifold
Types: 3-valve manifold
Material: stainless steel SUS304, SUS316
Mechanical connection: 1/2-14NPT(F), M20*1.5(M), M20*1.5(M) with rear welding guiding pressure tube, customer
Hole center distance between valve body two ends (instruments side): 54mm, 55.2mm,55.6mm, 57.2mm, 57.6mm, customer
Hole center distance between valve body two ends (mechanical connection side): standard 33mm, customer
Material: stainless steel SUS304, SUS316
Mechanical connection: 1/2-14NPT(F), M20*1.5(M), M20*1.5(M) with rear welding guiding pressure tube, customer
Hole center distance between valve body two ends (instruments side): 54mm, 55.2mm,55.6mm, 57.2mm, 57.6mm, customer
Hole center distance between valve body two ends (mechanical connection side): standard 33mm, customer
FZ10 Manifold
Types: 2-valve manifold
Material: stainless steel SUS304, SUS316
Mechanical connection1: 1/2-14NPT(F), None(welded), customer
Mechanical connection2: 1/2-14NPT(F), None(welded), customer
Material: stainless steel SUS304, SUS316
Mechanical connection1: 1/2-14NPT(F), None(welded), customer
Mechanical connection2: 1/2-14NPT(F), None(welded), customer
